Product features

Abbie Series Fixed downlight-IP44 rated

Description

The Abbie downlight is a fixed downlight series designed to blend seamlessly with various architectural settings, offering versatile illumination for entrance halls, corridors, offices, conference rooms, and beyond.

It’s crafted from powder-coated die-cast aluminum, available in elegant white or black. Clear glas, frosted glass optional. Tunable white can be availabe on request.

With a fixture efficacy of over 130 lm/W, UGR <19 for visual comfort, and an IP44 rating for damp location, the Abbie series is both powerful and practical.

Its compact design allows for a low installation depth, making it ideal for spaces with limited ceiling height.

Features & Benefits

  • Efficacy: up to 130 lm/W
  • Beam Angle:15° / 24° / 36° / 60°
  • LED: Bridgelux
  • CRI: Ra 90 /Ra 80
  • Color Temperature Options:2700K / 3000K / 3500K / 4000K
  • Clear glass / frosted glass
  • UGR<19

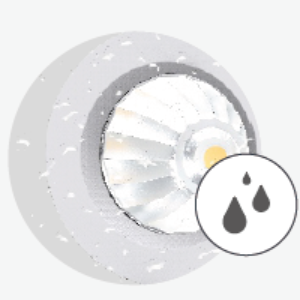

  • IP44 rated suitable for damp location
Compare

Description

Product variation

Abbie 25W

up to 3250 lm

Clear glass

Abbie 30W

up to 3900 lm

Frosted glass

Abbie 40W

up to 5200 lm

UGR<19

Abbie 50W

up to 6500 lm

IP44 rated

Tunable white(3000K-4000K)

Application Picture
Downloads
Product inforamation
Lighting technology
Media
Filters & configuration
Product VariantsCodeSystem WCRICCTBeamSystem lmLED VoltageLED BrandDimming
Abbie 25W (Cut-out: 120mm)A-D01B-25W-830-X-X-X25WRa>803000K 15D/24D/36D/60D3000 lm36VBridgeluxON-OFF,DALI Dimmable optional
A-D01B-25W-840-X-X-X25WRa>804000K 3250 lm36VBridgelux
Product VariantsCodeSystem WCRICCTBeamSystem lmLED VoltageLED BrandDimming

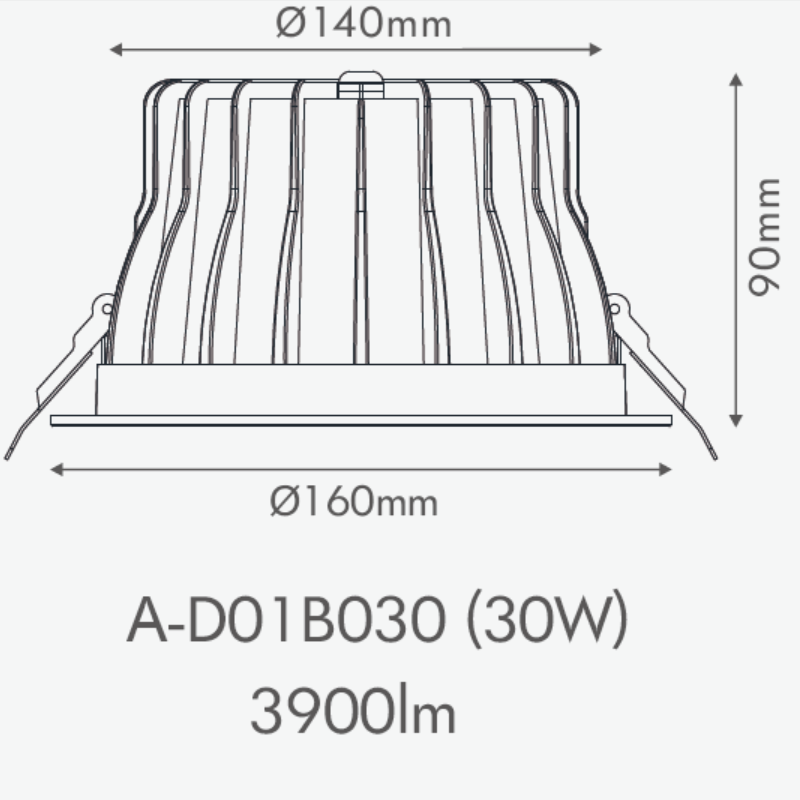

Abbie 30W (Cut-out: 140mm)A-D01B-30W-930-X-X-X30WRa>803000K 15D/24D/36D/60D3600 lm36VBridgeluxON-OFF,DALI Dimmable optional
A-D01B-30W-940-X-X-X30WRa>804000K 3900 lm36VBridgelux
Product VariantsCodeSystem WCRICCTBeamSystem lmLED VoltageLED BrandDimming
Abbie 40W (Cut-out: 170mm)A-D01B-40W-930-X-X-X40WRa>803000K 15D/24D/36D/60D4800 lm36VBridgeluxON-OFF,DALI Dimmable optional
A-D01B-40W-940-X-X-X40WRa>804000K 5200 lm36VBridgelux
Product VariantsCodeSystem WCRICCTBeamSystem lmLED VoltageLED BrandDimming
Abbie 50W (Cut-out: 230mm)A-D01B-50W-930-X-X-X50WRa>803000K 15D/24D/36D/60D6000 lm36VBridgeluxON-OFF,DALI Dimmable optional
A-D01B-50W-940-X-X-X50WRa>804000K 6500 lm36VBridgelux

Additional information
