Product features

Bella Series of track spotlight

Description

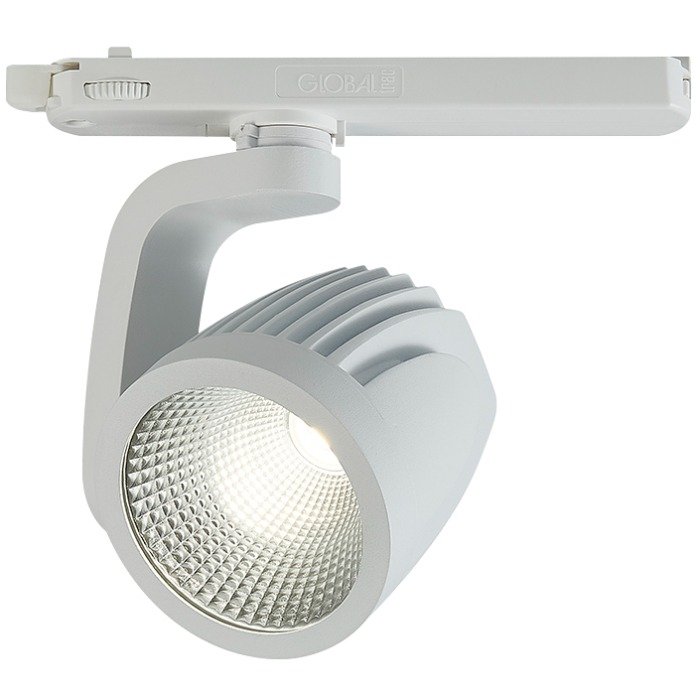

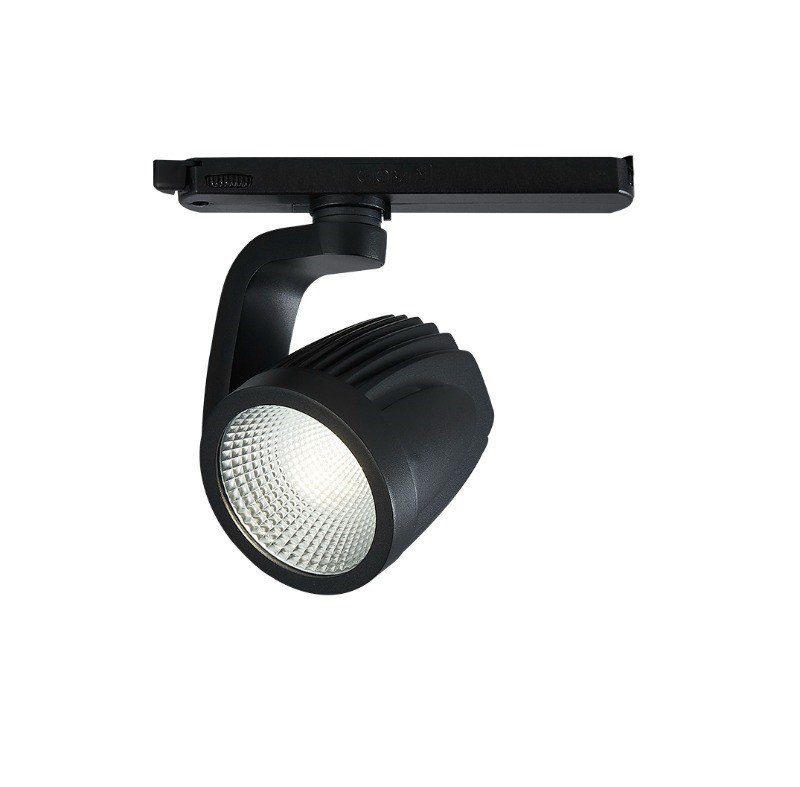

The Bella LED tracklight offers high efficiency lighting solution,up to 120lm/W. And the housing is made of powder-coated die casting aluminum and is available in the classic colors white (RAL 9016) and black (RAL 9005).

With variants in ON-OFF as well as with DALI drivers, the Bella series promises a variety of different and interesting configuration options. The LED track spotlights are compatible with GLOBAL as well as with POWERGEAR 3-Circuit Track systems, in which the spotlights – depending on the driver choice – can be controlled and dimmed separately via 3 different circuits.

It’s widely used such as shops and retail for illuminating goods and shelves, in museums and galeries for high-lighting exhibits, as well as for restaurants, hotels and bars for pleasant accent lighting.

Features & Benefits

  • In-track driver more silent ceiling board
  • High efficacy lighting solution,up to 120 lm/W,using Alanod Reflector
  • 25W / 36W optional, up to 4300 delivered lumen to perfectly replace the traditional metal halide fixtures
  • CCT: 2700K, 3000K, 4000K Available as Standard
  • Beam Angle: 15°, 24°, 36°, 60°
  • LED Driver: ON-OFF, DALI Dim
Compare

Description

Product variation

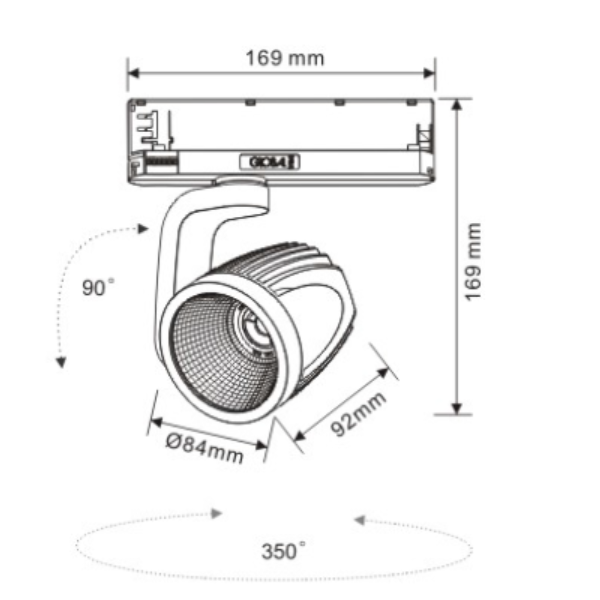

Bella 25W

up to 3000 lm (Ø84*92mm)

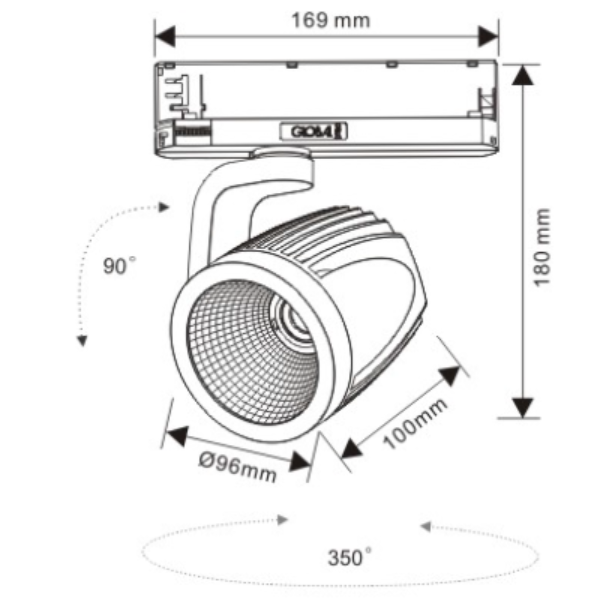

Bella 36W

up to 4300 lm (Ø96*100mm)

Application Picture
Downloads
Product inforamation
Lighting technology
Media
Filters & configuration
Product VariantsCodeSystem WCRICCTBeamSystem lmLED currentLED VoltageLED BrandDimming
Bella A-T05A-25WA-T05A-25W-830-X-X-X25WRa>803000K 15D/24D/36D/60D2850 lm600mA36VBridgeluxON-OFF,DALI Dimmable optional
A-T05A-25W-840-X-X-X25WRa>804000K 3000 lm600mA36VBridgelux
Product VariantsCodeSystem WCRICCTBeamSystem lmLED currentLED VoltageLED BrandDimming
Bella A-T05A-36WA-T05A-36W-830-X-X-X36WRa>803000K 15D/24D/36D/60D4100 lm900mA36VBridgeluxON-OFF,DALI Dimmable optional
A-T05A-36W-840-X-X-X36WRa>804000K 4300 lm900mA36VBridgelux
