Dara Series Deep-Recessed LED Downlights | Low-Glare Round & Square

Description

Dara Series — Deep-Recessed Downlights

The Dara Series is engineered for architectural spaces that demand low-glare visual comfort without compromising output or design flexibility. Six cut-out sizes (Ø75 / 90 / 125 / 145 / 165 mm round & matching square) share a uniform deep-set optic that hides the light source from direct view, achieving compliant UGR values for offices, retail, hospitality and high-end residential projects. Powered by premium CREE / Citizen COB LEDs in Ra ≥ 80 or Ra ≥ 90 versions, Dara delivers up to 3 780 lm at efficacies above 110 lm/W, across four field angles—15°, 24°, 38° and 55°—so designers can mix accent and ambient layers with a single aesthetic. Colour temperatures span 2700 K to 5000 K, while ON-OFF or DALI drivers ensure seamless integration with smart-building controls.

Features & Benefits

  • Deep-recessed optic (≥ 30 mm setback):Minimises glare; delivers soft, comfortable illumination that meets EN 12464-1 for workspaces.
  • Round & square trims in six sizes (75-165 mm cut-outs): Maintain a consistent ceiling language across corridors, lobbies, retail floors or large atria—no need for mixed families.
  • Four interchangeable beam angles 15° / 24° / 38° / 55°: Fine-tune light distribution from tight accent to wide general wash; reduce fixture count by matching beam to task.
  • Scalable lumen packages 810-3780 lm (9-42 W): One product line covers energy-efficient retrofit needs and high-output new-build requirements.

Ideal applications: open-plan offices • fashion & grocery retail • galleries & museums • hotel public areas • high-end residences • educational facilities
Bring ceiling uniformity, premium colour quality and precise beam control to every project with the Dara Series deep-recessed downlights.

  • Ask a Question
Compare

Description

Product variation

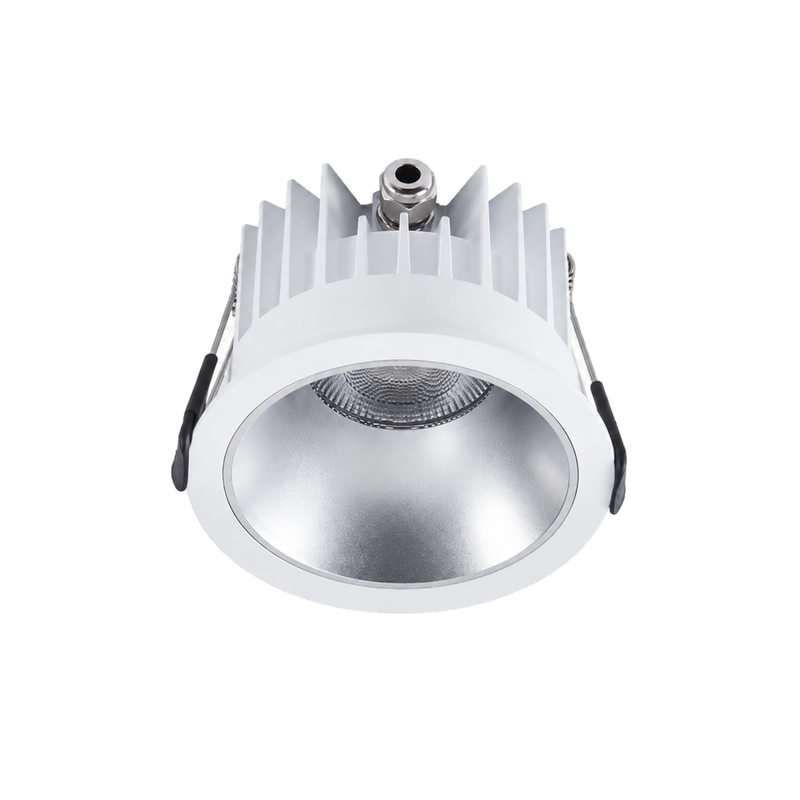

Dara series-ADL1075R

900lm / 1200lm / 1500lm

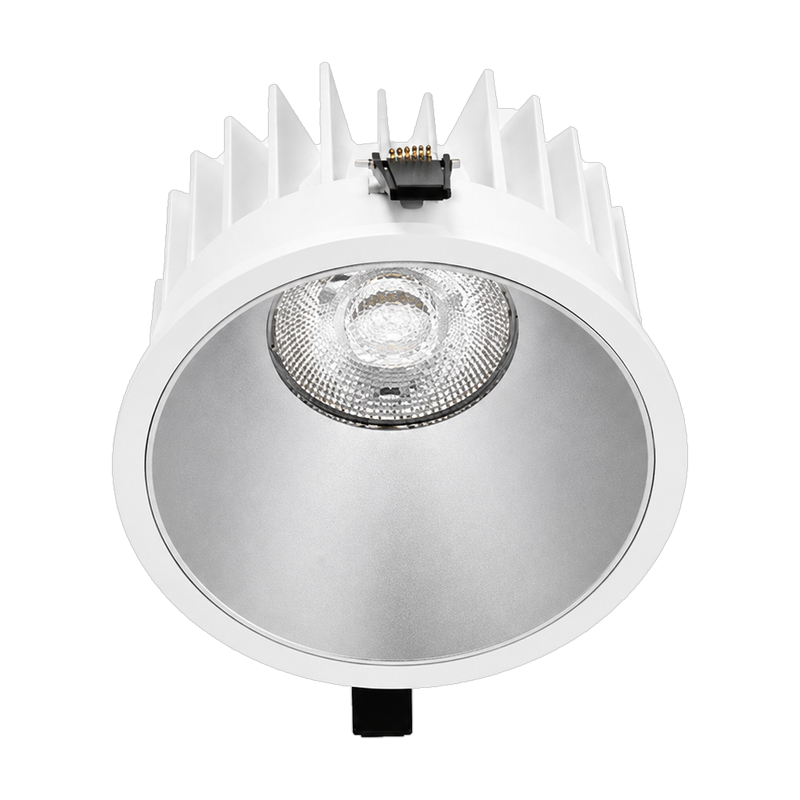

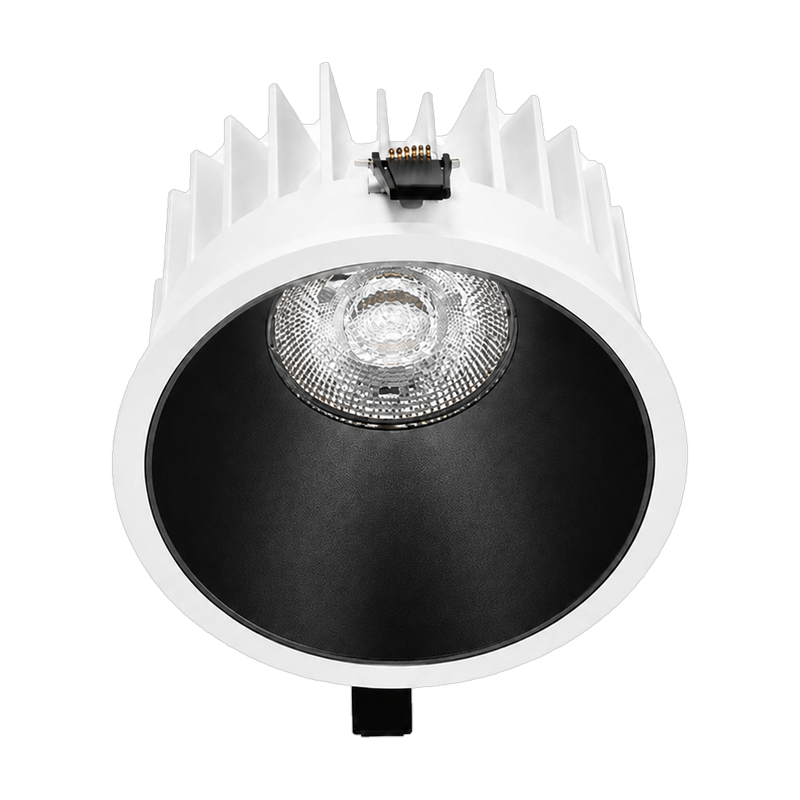

Dara series-ADL1090R

1200lm / 1500lm / 1800lm

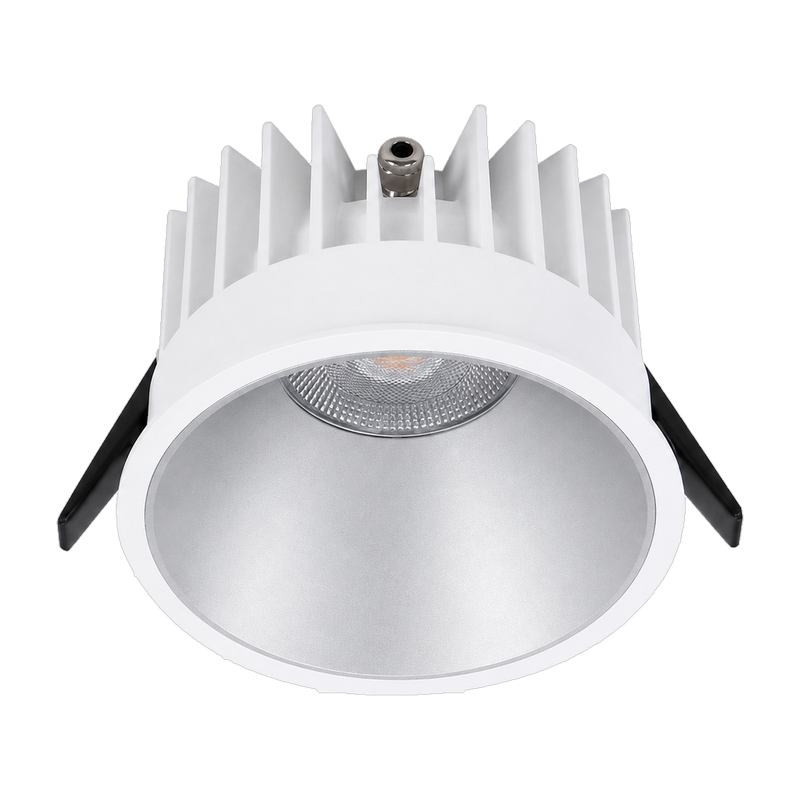

Dara series-ADL125R

1500lm / 2000lm / 2800lm

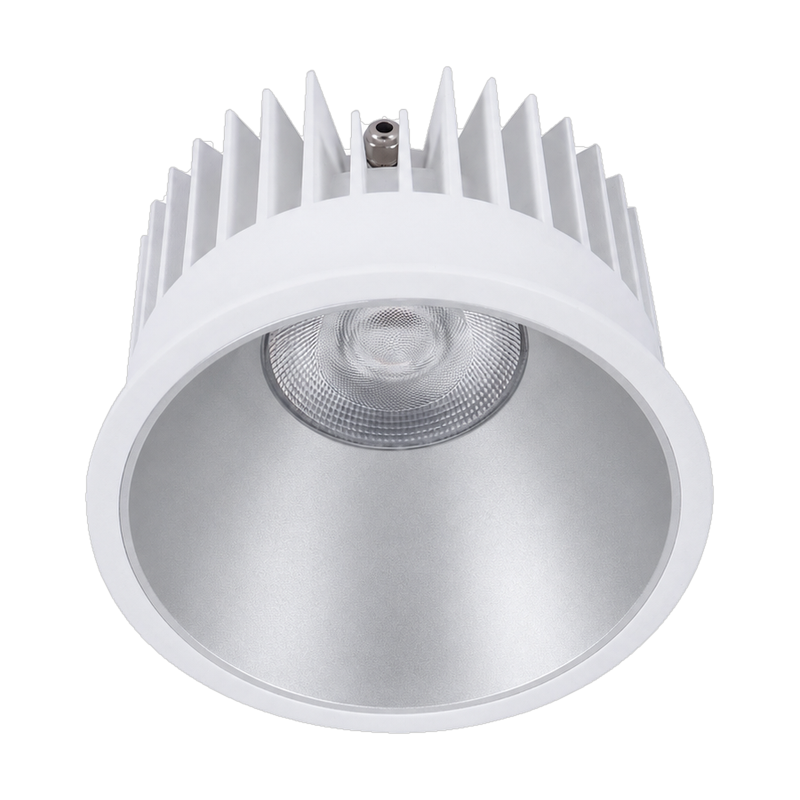

Dara series-ADL145R

2400lm / 2800lm / 3200lm

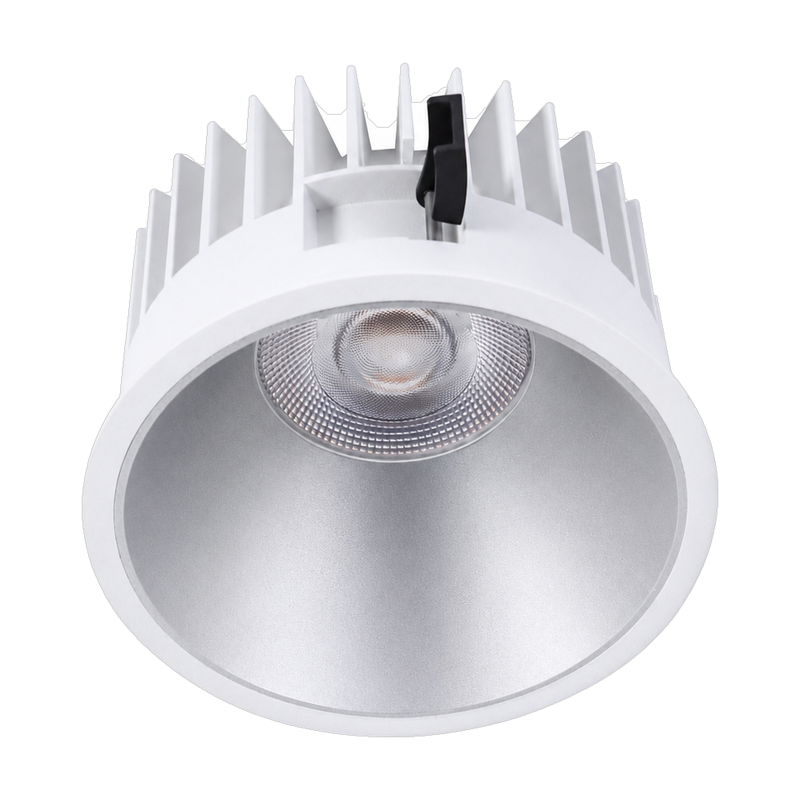

Dara series-ADL165R

2800lm / 3200lm / 4200lm

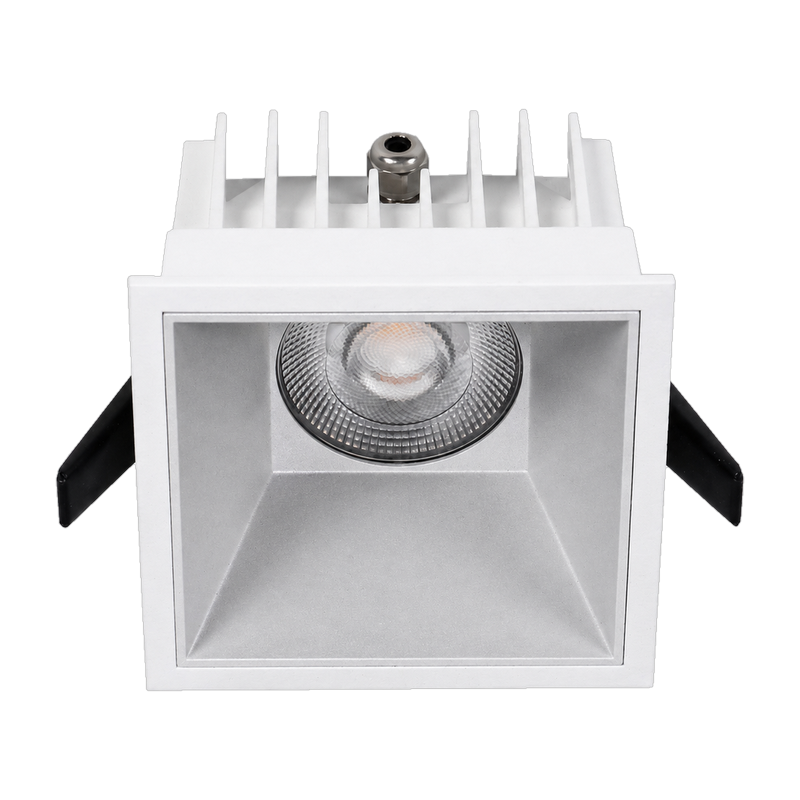

Dara series-ADL1090S

1200lm / 1500lm / 1800lm

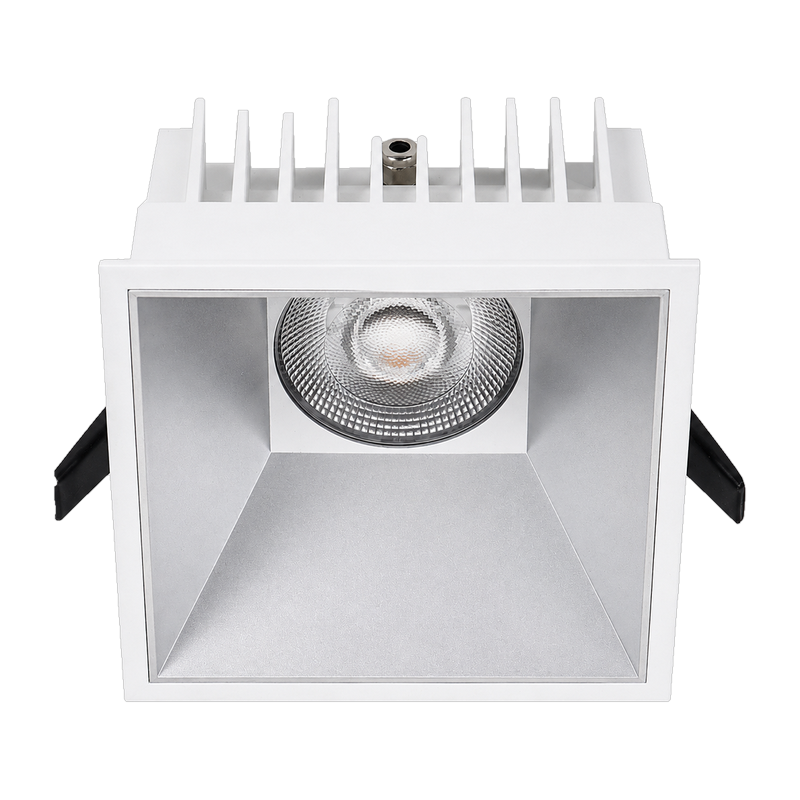

Dara series-ADL1125S

1500lm / 2000lm / 2800lm

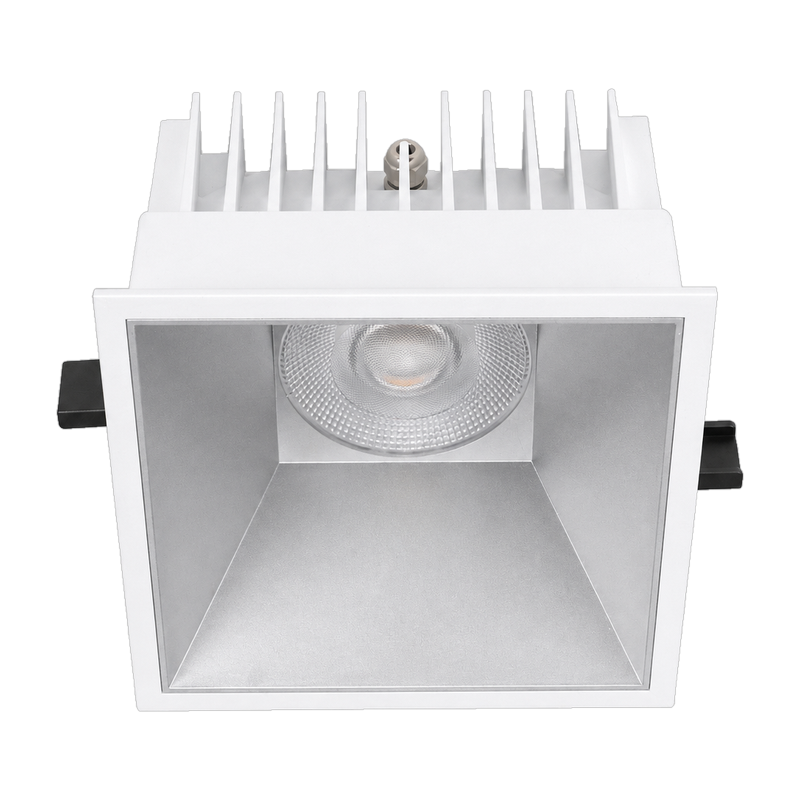

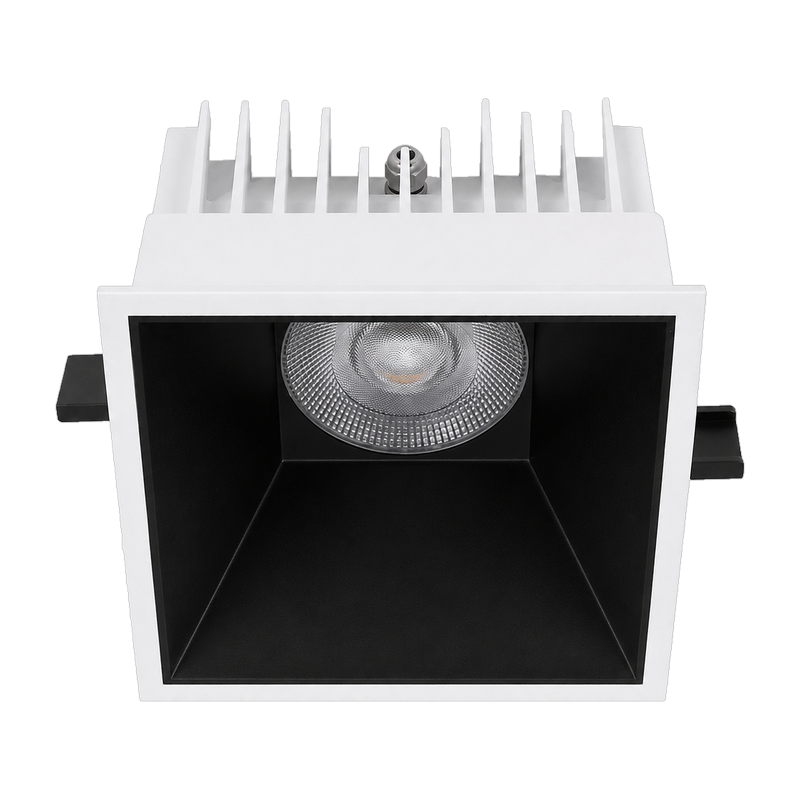

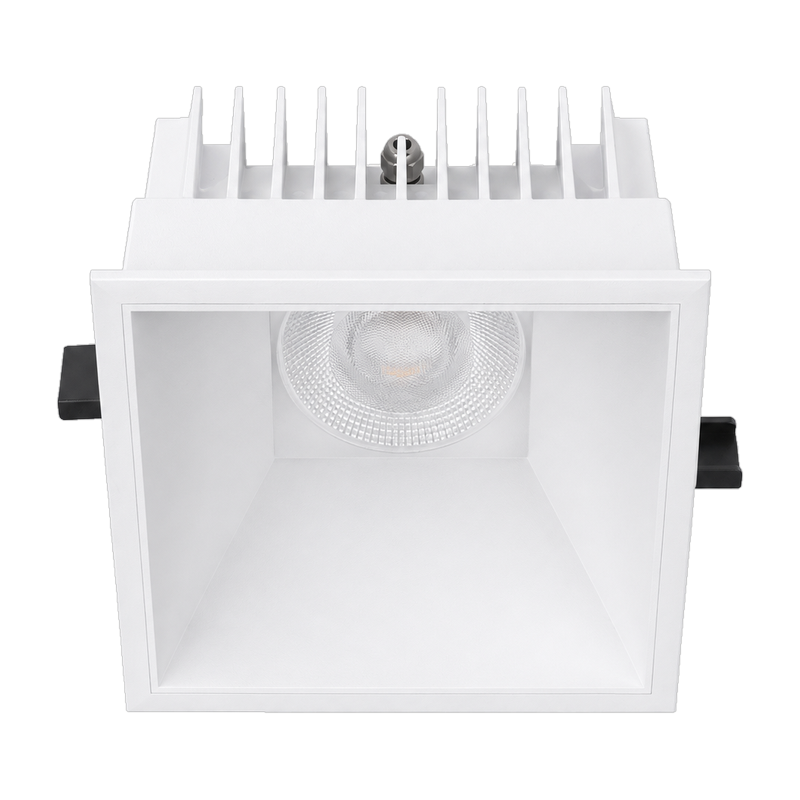

Dara series-ADL1145S

2400lm / 2800lm / 3200lm

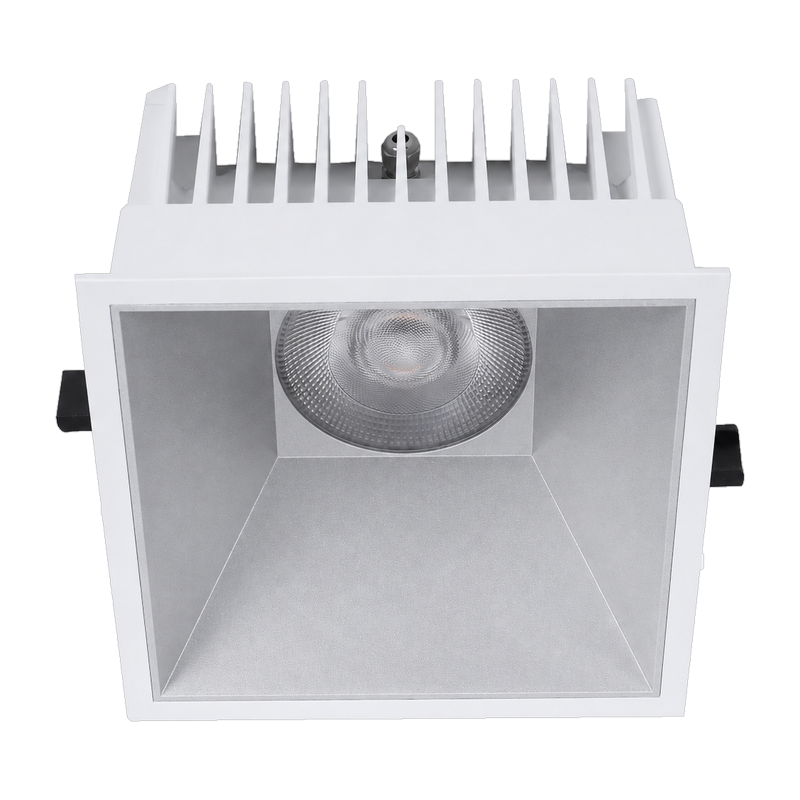

Dara series-ADL1165S

2800lm / 3200lm / 4200lm

Application Picture
Downloads
Product inforamation
Lighting technology
Media
Filters & configuration
Product VariantsCodeSystem WCRICCTBeamSystem lmLED BrandDimming
Dara 75 RoundA-D1075R-9W-X-X-X9WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D810 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:75mmA-D1075R-12W-X-X-X12W1080 lm
A-D1075R-15W-X-X-X15W1350 lm
Dara 90 RoundA-D1090R-12W-X-X-X12WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D1080 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:90mmA-D1090R-15W-X-X-X15W1350 lm
A-D1090R-18W-X-X-X18W1620 lm
Dara 125 RoundA-D1125R-15W-X-X-X15WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D1350 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:125mmA-D1125R-20W-X-X-X20W1800 lm
A-D1125R-28W-X-X-X28W2520 lm

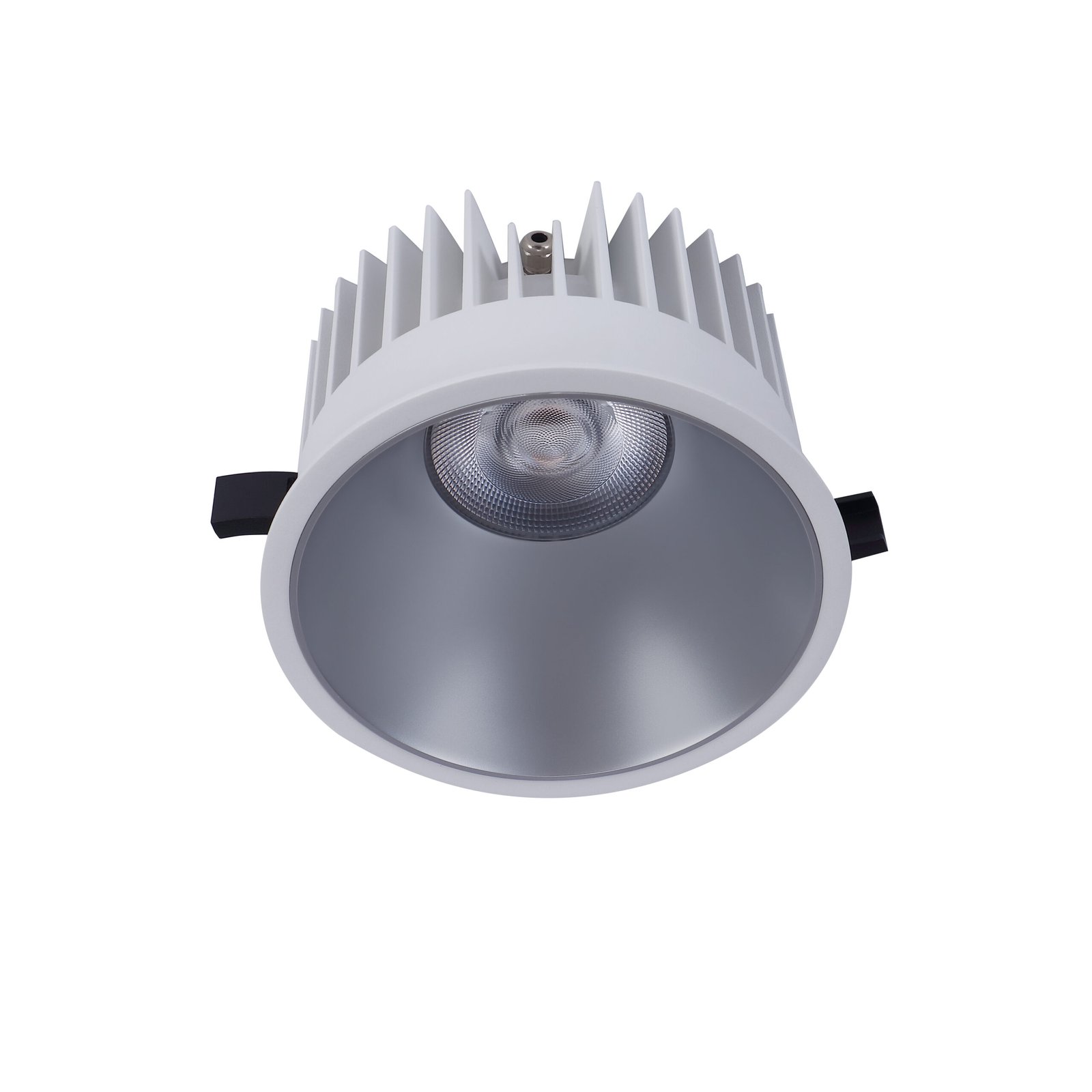

Dara 145 RoundA-D1145R-24W-X-X-X24WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D2160 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:145mmA-D1145R-28W-X-X-X28W2520 lm
A-D1145R-32W-X-X-X32W2880 lm

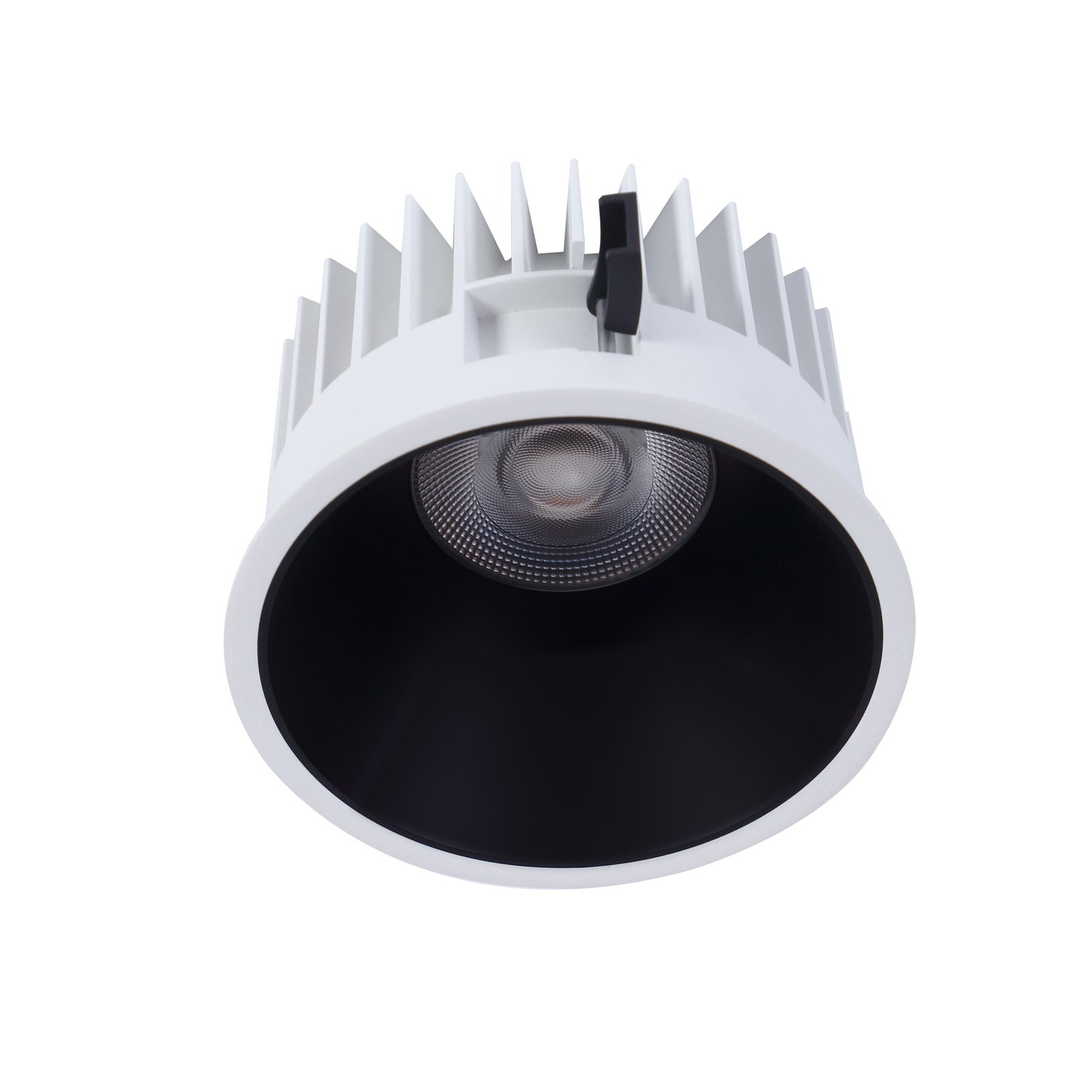

Dara 165 RoundA-D1165R-28W-X-X-X28WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D2520 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:165mmA-D1165R-32W-X-X-X32W2880 lm
A-D1165R-42W-X-X-X42W3780 lm
Dara 90 SquareA-D1090S-12W-X-X-X12WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D1080 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:90*90mmA-D1090S-15W-X-X-X15W1350 lm
A-D1090S-18W-X-X-X18W1620 lm
Dara 125 SquareA-D1125S-15W-X-X-X15WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D1350 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:125*125 mmA-D1125S-20W-X-X-X20W1800 lm
A-D1125S-28W-X-X-X28W2520 lm
Dara 145 SquareA-D1145S-24W-X-X-X24WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D2160 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:145*145mmA-D1145S-28W-X-X-X28W2520 lm
A-D1145S-32W-X-X-X32W2880 lm
Dara 165 SquareA-D1165S-28W-X-X-X28WRa>80 /Ra>902700K/3000K/ 4000K/ 5000K/15D/24D/38D/55D2520 lmCREE /CitizenON-OFF,DALI Dimmable optional
Cut-out:165*165mmA-D1165S-32W-X-X-X32W2880 lm
A-D1165S-42W-X-X-X42W3780 lm
