Product features

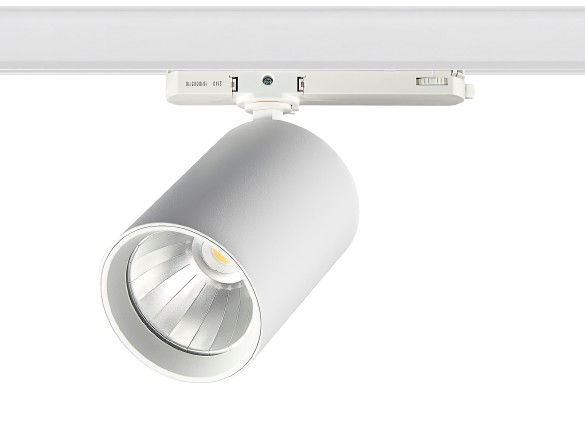

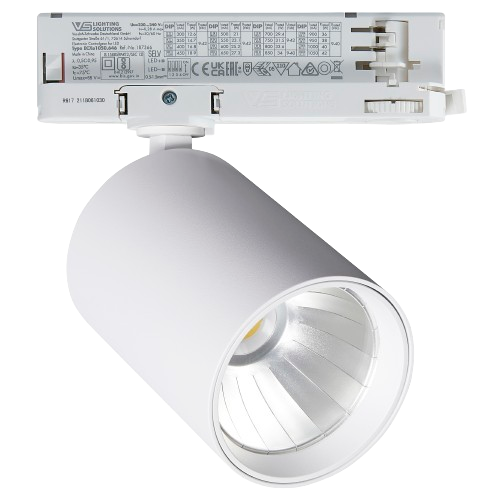

Diana Series of track spotlight(Ø80mm)

Description

The Diana LED tracklight offers high efficiency lighting solution,up to 160lm/W. And the housing is made of powder-coated extruded aluminum and is available in the classic colors white (RAL 9016) and black (RAL 9005).

With variants in ON-OFF as well as with DALI drivers, the Diana series promises a variety of different and interesting configuration options. The LED track spotlights are compatible with GLOBAL as well as with POWERGEAR 3-Circuit Track systems, in which the spotlights – depending on the driver choice – can be controlled and dimmed separately via 3 different circuits.

It’s widely used such as shops and retail for illuminating goods and shelves, in museums and galeries for high-lighting exhibits, as well as for restaurants, hotels and bars for pleasant accent lighting.

Features & Benefits

  • In-track driver more silent ceiling board
  • High efficacy lighting solution,up to 160 lm/W,using Alanod Reflector
  • 30W / 36W optional, up to 5600 delivered lumen to perfectly replace the traditional metal halide fixtures
  • CCT: 2700K, 3000K, 4000K Available as Standard
  • Beam Angle: 18°, 24°, 40°, 60°
  • LED Driver: ON-OFF, DALI Dim
Compare

Description

Product variation

Diana 30W

up to 4500 lm (Ø80*120mm)

Diana 36W

up to 5600 lm (Ø92*130mm)

Application Picture
Downloads
Product inforamation
Lighting technology
Media
Filters & configuration
Product VariantsCodeSystem WCRICCTSystem lmLED VoltageLED BrandBeam optionFinishDimming
Diana A-T02B-30WA-T02B-30W-930-X-X-X30WRa>903000K 3900 lm36VBridgelux18D/24D/40D/60DWhite /BlackON-OFF,DALI Dimmable optional
A-T02B-30W-940-X-X-X30WRa>904000K 4250 lm36VBridgelux
A-T02B-30W-830-X-X-X30WRa>803000K 4080 lm36VBridgelux
A-T02B-30W-840-X-X-X30WRa>804000K 4500 lm36VBridgelux
Product VariantsCodeSystem WCRICCTSystem lmLED VoltageLED BrandDimming
Diana A-T02B-36WA-T02B-36W-930-X-X-X36WRa>903000K 4800 lm36VBridgelux17D/24D/36D/60DWhite /BlackON-OFF,DALI Dimmable optional
A-T02B-36W-940-X-X-X36WRa>904000K 5250 lm36VBridgelux
A-T02B-36W-830-X-X-X36WRa>803000K 5080 lm36VBridgelux
A-T02B-36W-840-X-X-X36WRa>804000K 5600 lm36VBridgelux
