X-Beam series-55mm Flush-Trimless
Description
X-beam Series – Micro-aperture recessed LED Downlights
The X-beam Series offers premium recessed downlights designed for optimal visual comfort and sleek integration. Featuring 20 models with 7 cutout sizes, both trim and trimless options, it ensures versatile application. Equipped with a 75° shielding angle and UGR<7, it delivers superior glare control. With 75 lm/W efficacy, the X-beam Series provides uniform light distribution, consistent color, and clean, spot-free illumination.
Features & Benefits
- Advanced Glare Control:
The micro-aperture design and innovative optical structure eliminate glare and prevent center spot exposure, ensuring visually comfortable, flicker-free lighting. - High Light Output (75lm/W):
With industry-leading efficacy, the X-beam series delivers high light output without compromising on energy efficiency, offering one of the highest flux levels in the micro-aperture category. - Modular and Interchangeable Modules:
The modular design allows easy replacement of light source modules (55, 75, 40, 50), making it versatile and cost-effective for different applications. - Seamless Ceiling Integration:
The compact, flush-fit design provides a “see light, not lamp” effect, ensuring a clean, unobtrusive appearance that blends seamlessly with the ceiling. - Consistent Light Quality:
Uniform light distribution, consistent color, and smooth transition ensure superior visual comfort without dark spots or color inconsistencies.
-
Ask a Question
Ask a Question
X-Beam series-55mm Flush-Trimless
Description
Product variation
75 Flush Trimmed
55 Flush Trimmed
55 Flush Trimmed Bezel removable
45 Flush Trimmed Bezel removable
75 Flush Trimless
55 Flush Trimless
55 Flush Trimless Bezel removable
45 Flush Trimless Bezel removable
75 Curved Bezel Trimmed
55 Curved Bezel Trimmed
50 Flush Trimmed Bezel non removable
40 Flush Trimmed Bezel non removable
75 Curved Bezel Trimless
55 Curved Bezel Trimless
50 Flush Trimless Bezel non removable
40 Flush Trimless Bezel non removable
Application Picture
Downloads
Product inforamation
- Datasheet
- Brochure
- Tender text
- Installation instructions
- Certificates
Lighting technology
- Photometric files
Media
- Others
Filters & configuration
| X-Beam series-Flush Bezel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Sub-Range | Trim Style | Product Type | Cut-out | System W | Color Rendering | CCT | Beam | LED current | Forward voltage | |
| AXB-SAA75 | 75 Flush | Standard | Adjustable | 75mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-TAA75 | 75 Flush | Trimless | Adjustable | 80mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-SAA55 | 55 Flush | Standard | Adjustable | 55mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V | |

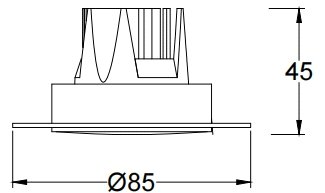

| AXB-TAA55 | 55 Flush | Trimless | Adjustable | 60mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V | |
| X-Beam series-Curved Bezel | |||||||||||
| Code | Sub-Range | Trim Style | Product Type | Cut-out | System W | Color Rendering | CCT | Beam | LED current | Forward voltage | |
| AXB-SAB75 | 75 Curve | Standard | Adjustable | 75mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-TAB75 | 75 Curve | Trimless | Adjustable | 80mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-SAB55 | 55 Curve | Standard | Adjustable | 55mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V | |
| AXB-TAB55 | 55 Curve | Trimless | Adjustable | 60mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V | |
| X-Beam series-Slim(Bezel removable) | |||||||||||
| Code | Sub-Range | Trim Style | Product Type | Cut-out | System W | Color Rendering | CCT | Beam | LED current | Forward voltage | |
| AXB-SAC55 | 55 Flush | Standard | Adjustable | 55 mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-TAC55 | 55 Flush | Trimless | Adjustable | 55 mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-SAC45 | 45 Flush | Standard | Adjustable | 45 mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-TAC45 | 45 Flush | Trimless | Adjustable | 45 mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| X-Beam series-Slim(Bezel non removable) | |||||||||||
| Code | Sub-Range | Trim Style | Product Type | Cut-out | System W | Color Rendering | CCT | Beam | LED current | Forward voltage | |
| AXB-SAD50 | 50 Flush | Standard | Adjustable | 50 mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-TAD50 | 50 Flush | Trimless | Adjustable | 50 mm | 10W/12W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 220/300mA | 30-42V | |
| AXB-SAD40 | 40 Flush | Standard | Adjustable | 40 mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V | |
| AXB-TAD40 | 40 Flush | Trimless | Adjustable | 40 mm | 5W/7W | Ra>90 | 2700K/3000K/3500K/4000K | 24D/36D | 120/150mA | 30-42V |
Additional information
| Find By | Blossom Pink, Naples Yellow, Purple, Single Blue, Spicy Mix, Venetian Red |
|---|
